Stainless Steel Wire Mesh 0.23 mm Aperture, 0.19 mm Wire (AISI 304)
getwiremesh sells this V2A wire mesh made of stainless steel AISI 304 (EN 1.4301, V2A) with an aperture of 0.23 mm and a wire diameter of 0.19 mm (60 mesh count). It weighs 0.9 kg/m², is cut to your exact size in Germany and ships with GLS across Europe or DHL worldwide for 44.00 € per m². Open area: approx. 30 · aperture 230 µm.
Stainless Steel
Cut to size in Germany – shipped to the UK & EU
Custom size

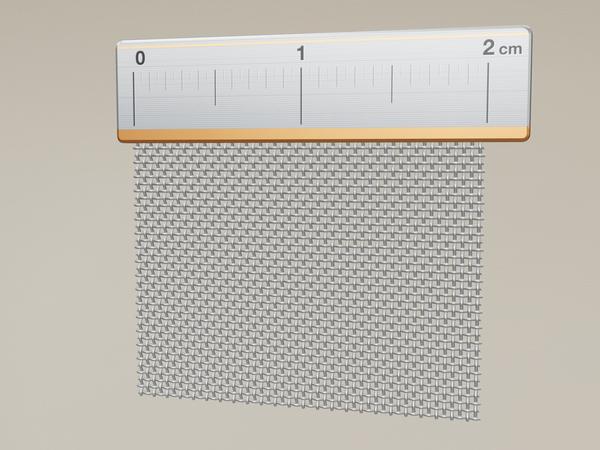

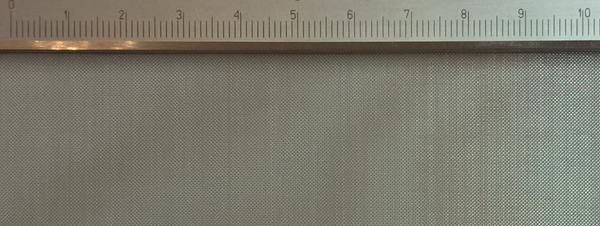

This woven stainless steel wire mesh has a 0.23 mm aperture (230 µm) and a comparatively thick 0.19 mm wire, which works out at 60 mesh. It is woven from AISI 304 (EN 1.4301, V2A) stainless steel. The heavy wire for this opening size makes the cloth noticeably stiffer and more wear-resistant than lighter 60 mesh weaves, so it keeps its shape in frames and tolerates repeated cleaning. The trade-off is a smaller open area, so it suits applications where strength matters more than maximum flow. Typical uses are fine sieving, dust and particle screens and robust filter inserts. We cut every sheet to your exact width and length, so it is ready to fit.
| Width | 0.23 mm |
|---|---|
| diameter | 0.19 mm |
| mesh | 60 |
| Material | stainless steel AISI 304 (EN 1.4301, V2A) |
| Open area | ≈ 30 % |
Use case

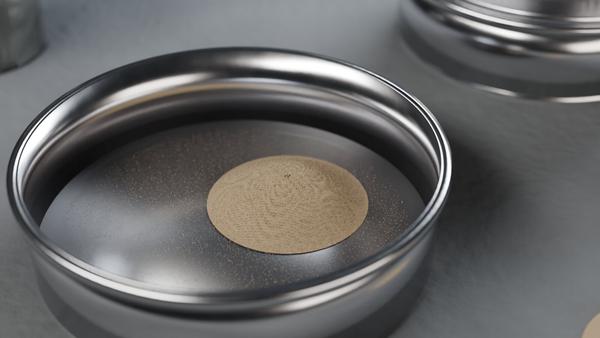

- Fine sieve inserts that are handled and cleaned frequently
- Dust and particle screens on housings, vents and intakes
- Robust filter elements where a 0.23 mm opening is required
FAQ
- What aperture and wire diameter does this mesh have?
- A 0.23 mm aperture (230 µm) woven from 0.19 mm stainless steel wire, which works out at 60 mesh.
- Why is the wire so thick for this opening?
- The 0.19 mm wire gives the cloth more stiffness and wear resistance than a light 60 mesh weave, at the cost of a smaller open area.
- Which stainless steel grade is used?
- AISI 304 (EN 1.4301, V2A), a general-purpose stainless grade for indoor and sheltered outdoor use.
- Can I order a custom size?
- Yes. Every sheet is cut to the width and length you specify.
