Stainless Steel Wire Mesh 0.4 mm Aperture, 0.25 mm Wire (AISI 304)
getwiremesh sells this V2A wire mesh made of stainless steel AISI 304 (EN 1.4301, V2A) with an aperture of 0.4 mm and a wire diameter of 0.25 mm (40 mesh count). It weighs 1.22 kg/m², is cut to your exact size in Germany and ships with GLS across Europe or DHL worldwide for 50.00 € per m². Open area: approx. 38 · aperture 400 µm.
Stainless Steel
Cut to size in Germany – shipped to the UK & EU
Custom size

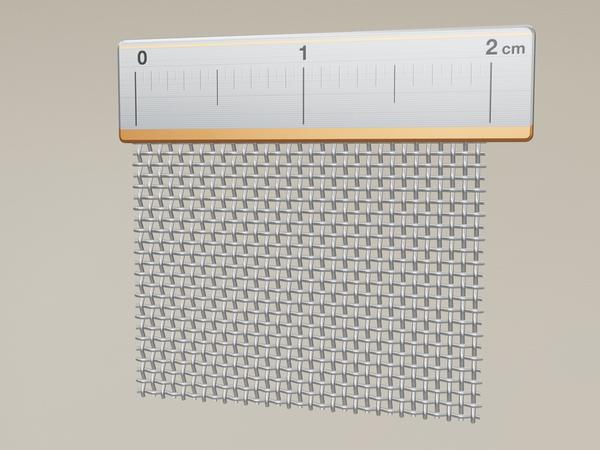

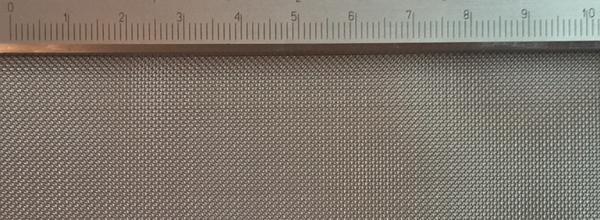

This woven stainless steel wire mesh has a 0.4 mm aperture (400 µm) and a 0.25 mm wire diameter, which works out at 40 mesh. It is woven from AISI 304 (EN 1.4301, V2A) stainless steel, a general-purpose grade with good corrosion resistance for indoor and sheltered outdoor use. The 0.4 mm opening sits between coarse screening and fine filtration: it retains sand, grit and similar particles while still allowing liquids and air to pass. The 0.25 mm wire gives the cloth enough stiffness to be handled and fitted without a support layer in most sieve and filter frames. We cut every sheet to your exact width and length, so it drops into your frame or housing without further trimming.
| Width | 0.4 mm |
|---|---|
| diameter | 0.25 mm |
| mesh | 40 |
| Material | stainless steel AISI 304 (EN 1.4301, V2A) |
| Open area | ≈ 38 % |
Use case

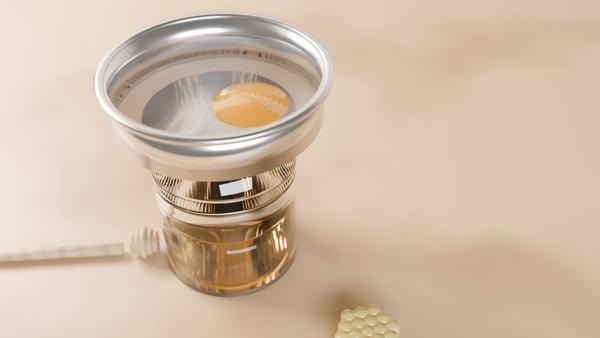

- Sieve and strainer inserts for separating particles around 0.4 mm
- Pre-filters and protective screens in front of finer filter media
- Fine ventilation and drain screens where small debris must be held back
FAQ
- What aperture and wire diameter does this mesh have?
- It has a 0.4 mm aperture (400 µm) woven from 0.25 mm stainless steel wire, which works out at 40 mesh.
- Which stainless steel grade is used?
- AISI 304 (EN 1.4301, V2A), a general-purpose stainless grade suited to indoor and sheltered outdoor applications.
- Does it need a support mesh?
- For most sieve and filter frames the 0.25 mm wire is stiff enough on its own. Under high pressure or flow, a coarser backing mesh helps keep it flat.
- Is the same mesh available in a more corrosion-resistant grade?
- Yes. The V4A (AISI 316) version has the same 0.4 mm aperture and is the better choice for marine, coastal and chemical environments.
