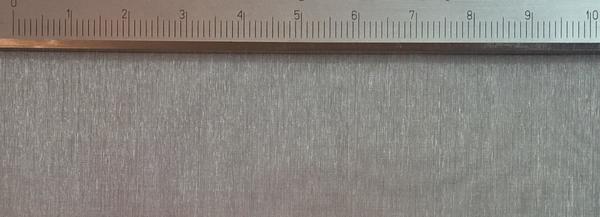

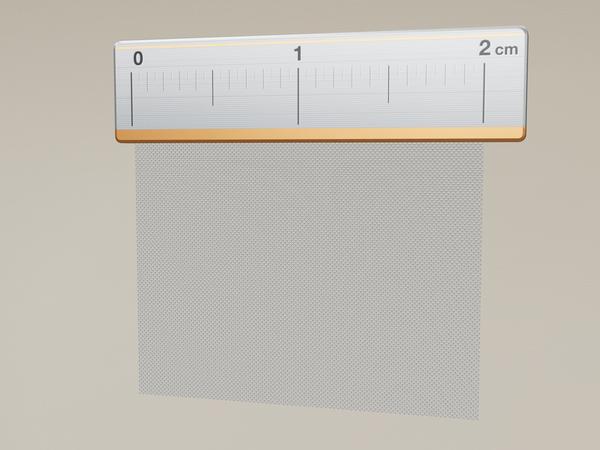

Stainless Steel Wire Mesh 0.075 mm Aperture, 0.05 mm Wire (AISI 316)

Price stable since 16 December 2025 Last updated: 11 November 2026
Wiremesh V4A Stainless Steel W: 0.075mm D: 0.05mm M: 200
V4A Stainless Steel
£26.00 / m²
plus £4.90 cutting fee per cut (net)
1,000 × 1,000 mm (1 m²): £30.90 excl. VAT (incl. cutting)
Aperture
0.075 mm
Wire diameter
0.05 mm
Mesh count
200
Material
AISI 316
Stainless Steel

Custom size

Measure & calculate your customized wiremesh sheet.

100–30000 mm

100–1000 mm

Weight –
Price –
Cut to size in Germany
Shipped to the UK & EU
Dispatched the same or next working day
excl. VAT

Prices excl. VAT. VAT is calculated at checkout from the delivery country (UK and other non-EU deliveries: no VAT, export; import duties and taxes are payable by the buyer).

This is the finest mesh in our range: a woven stainless steel cloth with a 0.075 mm aperture (75 µm) and a 0.05 mm wire, which works out at 200 mesh. It is woven from AISI 316 (EN 1.4401, V4A) stainless steel, the molybdenum-alloyed grade that resists chlorides and many aggressive liquids better than standard 304. The 75 µm opening retains very fine particles and sediment, so the cloth is used as a filter medium in liquids and gases rather than as a screen. Because the wire is so fine, the cloth is delicate: it should be supported by a coarser mesh in pressure filters and handled with care when fitting. We cut every sheet to your exact width and length.

Width 0.075 mm
diameter 0.05 mm
mesh 200
Material stainless steel AISI 316 (EN 1.4401, V4A)
Open area ≈ 36 %

Use case

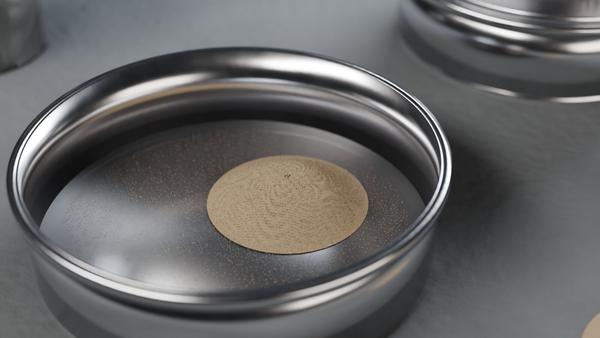

  • Fine filter inserts with a 75 µm cut-off for liquids and gases
  • Strainer and sieve elements for fine powders and sediments
  • Filtration in corrosive media where AISI 316 is required

FAQ

What does 200 mesh mean here?

200 openings per inch: a 0.075 mm (75 µm) aperture woven from 0.05 mm stainless steel wire.

Why is it woven in AISI 316?

The 316 grade (EN 1.4401, V4A) resists chlorides and many aggressive liquids better than 304, which matters for a filter cloth this fine.

How should it be installed?

Support it on a coarser mesh in pressure filters and avoid creasing the sheet. The 0.05 mm wire is easily damaged if the cloth is folded sharply.

Is there a coarser V4A alternative?

Yes. The 0.1 mm (150 mesh) and 0.125 mm (120 mesh) V4A meshes are the next sizes up.
